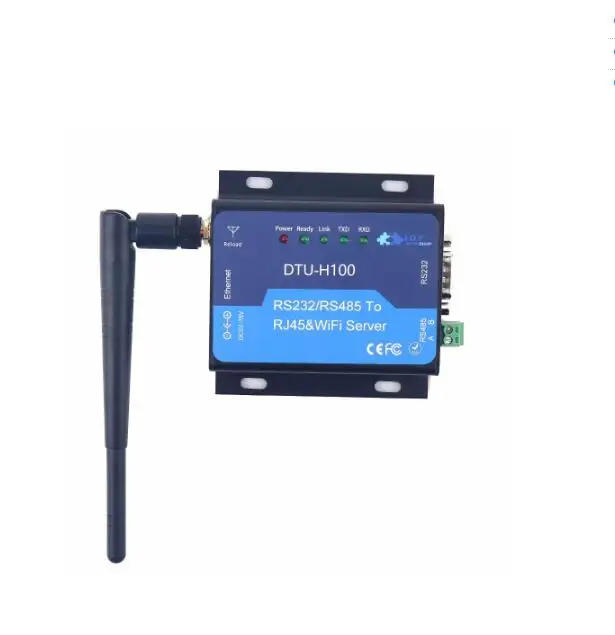

WIFI Serial Server RS232/RS485 to RJ45&WIFI Server converter module(DTU-H100) for industrial automation data transmission

WIFI Serial font b Server b font RS232 RS485 to RJ45 WIFI font b Server b
Click to see details
WIFI Serial font b Server b font RS232 RS485 to RJ45 WIFI font b Server b
HTB1r
HTB1czCBRFXXXXXDXXXXq6xXFXXXW
HTB1
60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $28.25 / piece
Sale price:  US $26.84 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

DTU-H100 Utility: Wi-Fi ,Ethernet(Assist Router operate), RS232 and RS485 each assist. Stability: Use business grade answer, Handed ESD safety! Efficiency: With a 360 MHZ 32-bit processor!

Class

Merchandise

Parameters

Ethernet Port

Port Quantity

1

Interface

Eight-Pin RJ45

PHY Fee

10/100Mbps, MDI/MDIX

Community Protocol

IP/TCP/UDP/DHCP/DNS/HTTP/ARP/

ICMP/Net socket/Http Consumer

Wi-Fi Port

Commonplace

802.11 b/g/n

Community Mode

STA/AP/STA+AP

Max Connection

32

Transmit Energy

802.11b: +20 dBm (Max.)

802.11g: +18 dBm (Max.)

802.11n: +15 dBm (Max.)

ReceiverSensitivity

802.11b: -89 dBm (@11Mbps, CCK)

802.11g: -81dBm(@54Mbps, OFDM)

802.11n: -71dBm(@HT20, MCS7)

Antenna Possibility

Exterior: 3dBi Antenna

Port Quantity

2(1 x RS232, 1x RS485)

UART Port

Interface Commonplace

RS232: DB9 Pin Kind

RS485: 2 wire(A+, B-)

Knowledge Bits

5,6,7,Eight

Cease Bit

1,2

Verify Bit

None, Even, Odd, House, Mark

Baud Fee

300 bps ~ 460800bps

Circulation Management

RTS / CTS

Hardware Parameters

Enter Voltage

5~18V DC Enter

Working Present

Avg:170mA Peak:400mA

Working Temp.

-40℃~85℃

StorageTemp.

-45℃- 125℃/ 5 ~ 95% RH

Dimensions

84 x 84 x25mm

Certificates

CE/FCC/TELEC/RoHS

Guarantee

2 Years

Software program Parameters

Community Kind

STA/AP/STA+AP

Safety Kind

WEP/WPAPSK/WPA2PSK

Encryption

WEP64/WEP128/TKIP/ AES

Community Protocol

TCP/UDP/ARP/ICMP/DHCP/DNS/HTTP

Max. TCP Connection

32

Configure Interface

Net Server / AT Command

Customization

Assist Software program Customization
